NeXus Trigger Interface

NeXus Trigger Interface

652.92

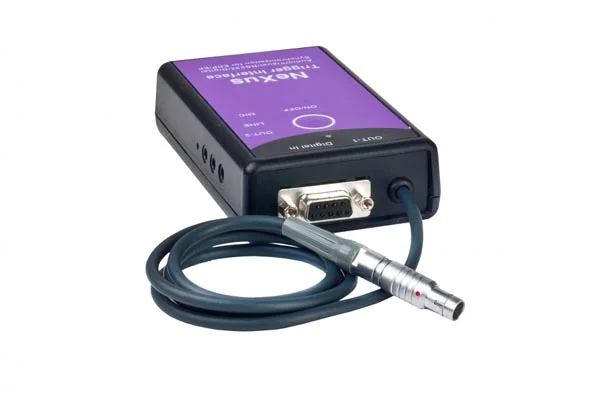

The NeXus Trigger Interface (NTI) is used to accurately synchronize the physiological parameters being recorded by the NeXus device.

Quantity:
Add To Cart

The NeXus Trigger Interface (NTI) is used to accurately synchronize the physiological parameters being recorded by the NeXus device with external stimuli (triggers) generated by computer running e.g. E-prime/Presentations or external devices like Eye-trackers, etc. This can be done by sending markers to the NTI over a RS232 Serial cable, the light sensor, microphone or audio cable. It can be used for registering stimuli in event related potentials (ERP) or evoked potentials (EP) experiments, also in combination with E-prime or presentations.

The NTI measures all of its inputs with 2048 samples/second, which comes to an accuracy of less than 1 ms. The NTI is not compatible with NeXus-4.

The specifications of the NeXus Trigger Interface are:

  • Compatible with NeXus-10 & NeXus-32
  • Input signals   RS232
  • Microphone     Line-in
  • On/off switch
